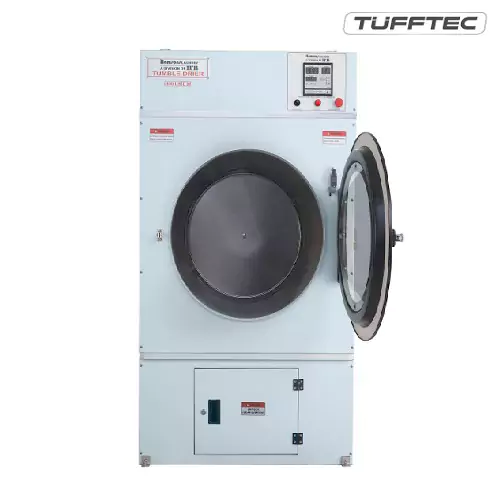

The Tufftec Tumble Dryer has a special radiator/ heat exchanger design that maximizes drying performance and efficiency to deliver perfect drying. In addition, it comes equipped with a programmable microprocessor control system. Cooling down damper and fire suppression systems are also available as options.
| General |
|
| Dimension (W x D x H) mm |
1050x1320x1870 |
| Capacity(Kg) |
30 |
| Net Weight (kg) |
500 |
| Drum Volume (L) |
613 |
| Drum Diameter (mm) |
970 |
| Drum Depth (mm) |
830 |
| Door Open Diameter (mm) |
750 |
| Performance |
|
| Drive Motor (HP) |
1 |
| Exhaust Motor (HP) |
1 |
| Technical Specifications |
|
| Condensate Steam Outlet (Inch) |
1 |
| Heater (kW) |
24 |
| Steam Inlet (Inch) |
1, 0.25 |
| Steam Pressure (Bar) |
4-5 |
| Steam Consumption (kg / hr) |
40 |
| Hot Air Outlet Size(mm) |
150x200 |
| Total Connected Load For Steam (kW) |
1.5 |
| Total Connected Load For Electrical (kW) |
25.5 |
-
Weight
500 Kg
-
Dimensions
1050x1320x1870
-
Color
Tumble dryer
