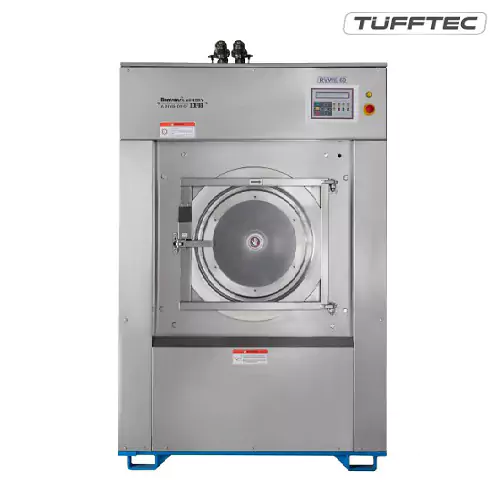

RVWE60 Washer Extractor - This Tufftec Washer Extractor is designed for professional needs. Innovative features like the LCD display makes it easy to use, select, and store wash programs. Robust stainless steel construction prevents rusting and ensures superior durability. Minimal time to fill and discharge water improves productivity and maximizes savings.
Major Features
Washer-Extractor - Fron Loading and Unloading
High-Speed Extraction
Fully Suspended soft mount types
Stainless steel construction
Fully Programmable PLC: Store 24 programs with large LCD Display showing complete message information of the program Pause and continue features are provided in case of a power outage. The preset programs can be easily modified.
Japanese inverter drive - Single motor with visible frequency inverter drive render various speeds for washing, distribution, and low, medium, and high spin extraction, it also controls electrical peak load demands.
Additional Features
High Torque inverters and heavy-duty motors ensure high efficiency and low power consumption.
Provided with 5-6 stainless steel chemical compartments.
Safety feature
Both auto and manual door lock mechanisms ensure the door stays closed during operation.
Emergency stop switch
Heavy-duty bearing housing and pully construction - Extremely rugged and resourceful machine for heavy-duty operations.
Smooth operation with start-stop ensures the least wear and tear.
Minimal time to fill and discharge water. Improves productivity and helps maximize savings.
General |
|
Dimension (W x D x H) mm |
1370x1580x1950 |
Capacity(Kg) |
60 |
Net Weight (kg) |
1650 |
Drum Volume (L) |
620 |
Drum Diameter (mm) |
1020 |
Drum Depth (mm) |
700 |
Door Open Diameter (mm) |
670 |
Performance |
|
Motor (HP) |
7.5 |
G-Factor Inch |
350 |
Final Extraction(RPM) |
785 |
Technical Specifications |
|
Steam Inlet(Inch) |
0.5 |
Water Inlet(Inch) |
1.5 x 2 |
Drain Outlet(Inch) |
4 |
Steam Consumption (kg / hr) |
60 |
Heater(kW) |
27 |
Compressed Air Inlet (mm) |
5-7 |
Compressed Air Pressure (Bar) |
PU-8 |
Total Connected Load For Steam (kW) |
11.2 |
Total Connected Load For Electrical (kW) |
38.2 |
-
Weight
1650 Kg
-
Dimensions
1370x1580x1950
-
